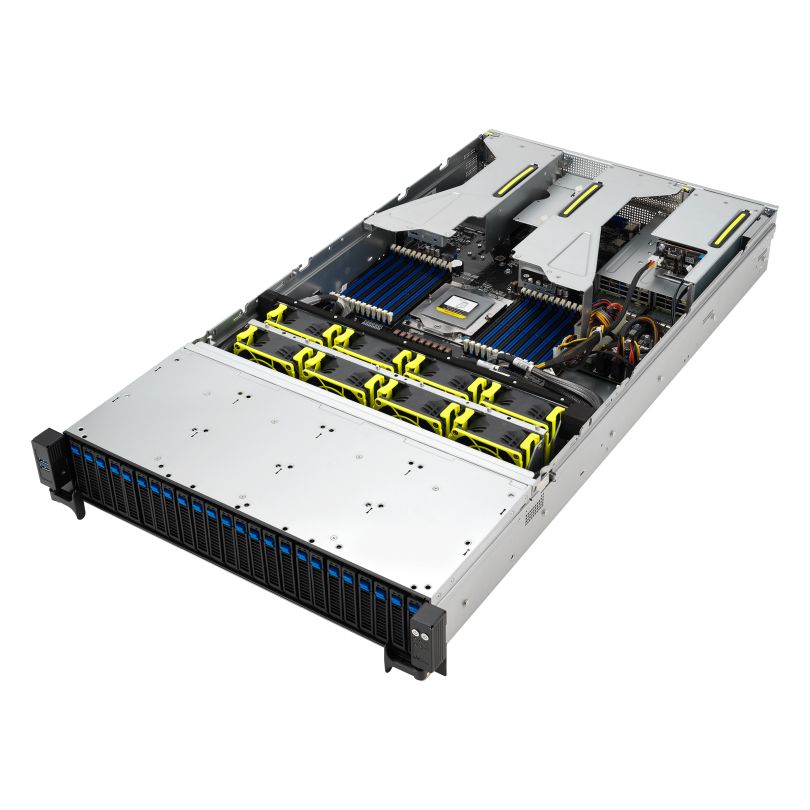

Server ASUS RS520A-E12-RS24U, Rack 2U, fara procesor, AMD socket SP5 max 400 W, fara memorie, 24 x SFF, 2 x 1600 W
Server ASUS RS520A-E12-RS24U, Rack 2U, fara procesor, AMD socket SP5 max 400 W, fara memorie, 24 x SFF, 2 x 1600 W
Nou
În stoc
Specificații
Producător
Dell
Procesor Suportat
AMD
RAM Suportat
DDR5 ECC
Platforma
RS520A-E12-RS24U
Producator
ASUS
Form factor
Rack
Preț de bază
16.073,74 RON
Referință: 377045
SKU: 90SF02G1-M000D0
Include livrarea în UE
S-ar putea să te intereseze
- Server DELL PowerEdge T360, Tower, Intel Xeon 6353P (8 C / 16 T, 2.70 GHz - 5.40 GHz, 24 MB cache, 65 W), 32 GB DDR5 ECC, 2 x 960 GB SSD, 8 x LFF, DELL PERC H755, 2 x 700 W
- Server Lenovo ThinkSystem ST50 V3, Tower, Intel Xeon 6315P (4 C / 4 T, 2.80 GHz - 4.70 GHz, 12 MB cache, 55 W), 16 GB DDR5 ECC, 2 x 960 GB SSD, 3 x LFF, 500 W
- Server HPE ProLiant DL360 Gen12, Rack 1U, Intel Xeon 6517P (16 C / 32 T, 3.20 GHz - 4.20 GHz, 72 MB cache, 190 W), 64 GB DDR5 ECC, HPE NS204i-u Gen11 480 GB, 8 x SFF, 2 x 1000 W
- Server DELL PowerEdge R360, Rack 1U, Intel Xeon 6333P (6 C / 6 T, 3.10 GHz - 5.20 GHz, 18 MB cache, 65 W), 32 GB DDR5 ECC, 2 x 480 GB SSD, 8 x SFF, DELL PERC H755, 700 W
Key Features
- Powerful performance:Powered by AMD EPYC 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts
- Scale-up storage and expansion design:Up to 24 all-flash NVMe drives on the front panel, two drives in the real panel, and 5 PCIe 5.0 slots for higher bandwidth and system upgrade
- Flexible networking module design:On-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Air cooling solution: With heatsink achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers for versatile workloads
- Enhanced IT-infrastructure management:ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
- Read for AI and HPC workloads:Up to two dual-slot GPUs, including NVIDIA A100 and A40, AMD Instinct and Xilinx
- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
- The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- The information contained is general testing result for reference. Please consult local sales representative for more information on specific supported CPU list on each system.
- * Optional means “built for order”.
ASUS RS520A-E12-RS24U Socket SP5 Rack (2U) Grey
SKU: 90SF02G1-M000D0 | Referință: 377045
Descriere scurtă
Platformă rack 2U ASUS RS520A-E12-RS24U, proiectată pentru procesoare AMD EPYC 9004. Include 16 sloturi NVMe, 8 porturi SATA/SAS, 2 sloturi M.2, 2 GPU, 2 porturi 10 GbE, IPMI și alimentare 1+1 1600 W.
Descriere detaliată
ASUS RS520A-E12-RS24U este o platformă rack 2U, ideală pentru centre de date și servere de performanță ridicată. Proiectată pentru procesoarele AMD EPYC 9004 (cunoscută și sub denumirea de “Genoa”), placa oferă o capacitate de stocare extinsă și opțiuni de conectivitate flexibile.
- Form Factor: Rack 2U, greutate < 30 kg, dimensiuni 19” (rack) x 4,4” (înălțime).
- Procesor: Socket SP5, suport pentru 2 procesoare AMD EPYC 9004 (max. 64 de nuclee per socket).
- Stocare:
- 16 sloturi NVMe M.2 (PCIe 4.0/5.0)
- 8 porturi SATA/SAS (6 Gb/s)
- 2 sloturi M.2 (PCIe 4.0)
- GPU: 2 sloturi PCIe x16 pentru plăci grafice dedicate.
- Rețea: 2 porturi 10 GbE (RJ‑45) și 2 porturi 1 GbE.
- Alimentare: 1+1 1600 W (dual PSU) cu protecție redundanță.
- Gestionare: IPMI 2.0 cu interfață web, SSH și SNMP.
- Conectivitate: 2 porturi USB 3.2, 1 port USB 2.0, 1 port eSATA.
- Alte caracteristici: Gimbal de răcire cu ventilație optimizată, suport pentru cabluri de alimentare de 2× 400 V.
- Culoare: Grey (negru gri).
| MODEL | |
| Producator | ASUS |
| Platforma | RS520A-E12-RS24U |
| Recomandat pentru | Small Business |
| Form factor | Rack |
| PROCESOR | |
| Procesoare incluse | Fara procesor |
| Producator | AMD |
| Socket | SP5 |
| Nucleu | Genoa |
| TDP | 400 W |
| MEMORIE | |
| Capacitate memorie | Fara memorie |
| Tip memorie | DDR5 ECC |
| Compatibilitate DIMM | RDIMM |
| Frecventa | 4800 MHz |
| Sloturi memorie | 24 |
| Memorie maxima | 6 TB |
| STOCARE | |
| Capacitate HDD | Fara HDD/SSD |
| Interfata SSD | M.2 NVMe |
| Unitati stocare suportate | 24 |
| Format unitati stocare | SFF |
| Tip unitati stocare | Hot-Plug |
| Controller stocare | AMD |
| Interfete suportate | SATA 6G, SAS 12G, NVMe |
| RAID | Software |
| PLACA DE BAZA | |
| Procesoare suportate | 1 |
| Sloturi PCIe x8 | 1 |
| Sloturi OCP | 1 |
| Sloturi M.2 | 2 |
| Video integrat | Aspeed AST2600 |
| CONECTIVITATE | |
| LAN | 2 x 1GbE |
| Controller retea | Intel i350 |
| Administrare la distanta | Aspeed AST2600 |
| CARCASA SURSA | |
| Format | Rack 2U |
| Dimensiuni | 8.8 x 44.9 x 84.0 cm |
| Greutate | 19.1 kg |
| Surse suportate | 2 |
| Surse incluse | 2 |
| Putere sursa | 1600 W |
| Certificare | Platinum |
| FRONT PANEL | |
| USB 3.0 | 2 |
| Video | 1x VGA |
| BACK PANEL | |
| RJ-45 | 2 + 1 (Management) |
| USB 3.0 | 2 |
| VGA | 1 |
| SOFTWARE | |
| Sistem de operare | Fara sistem de operare |
